Blade Solar Street Light

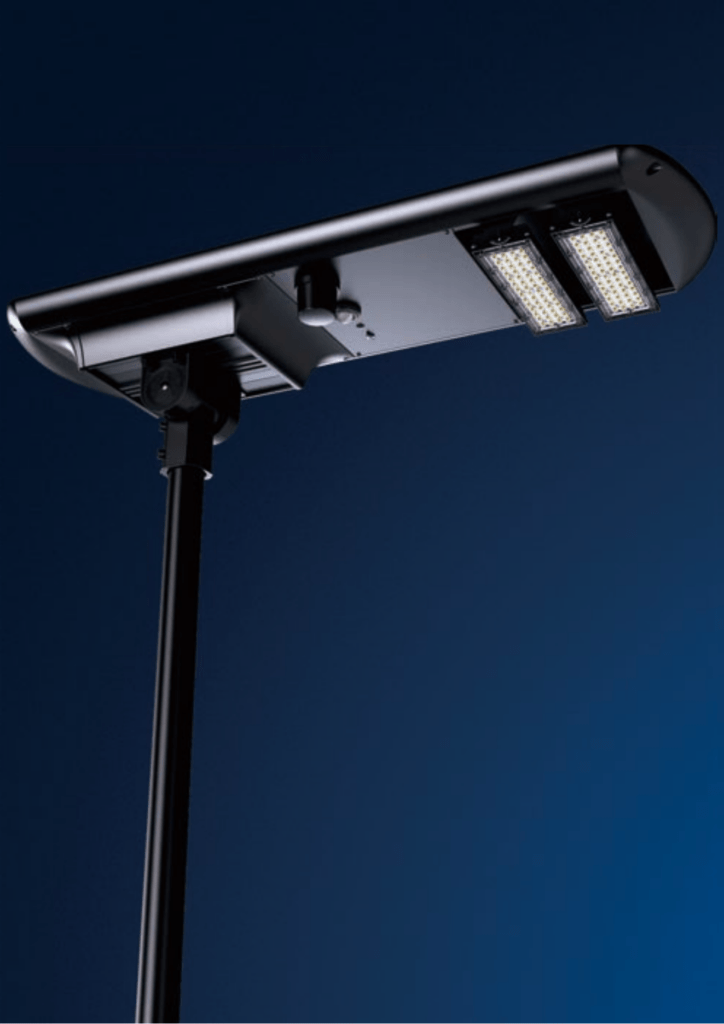

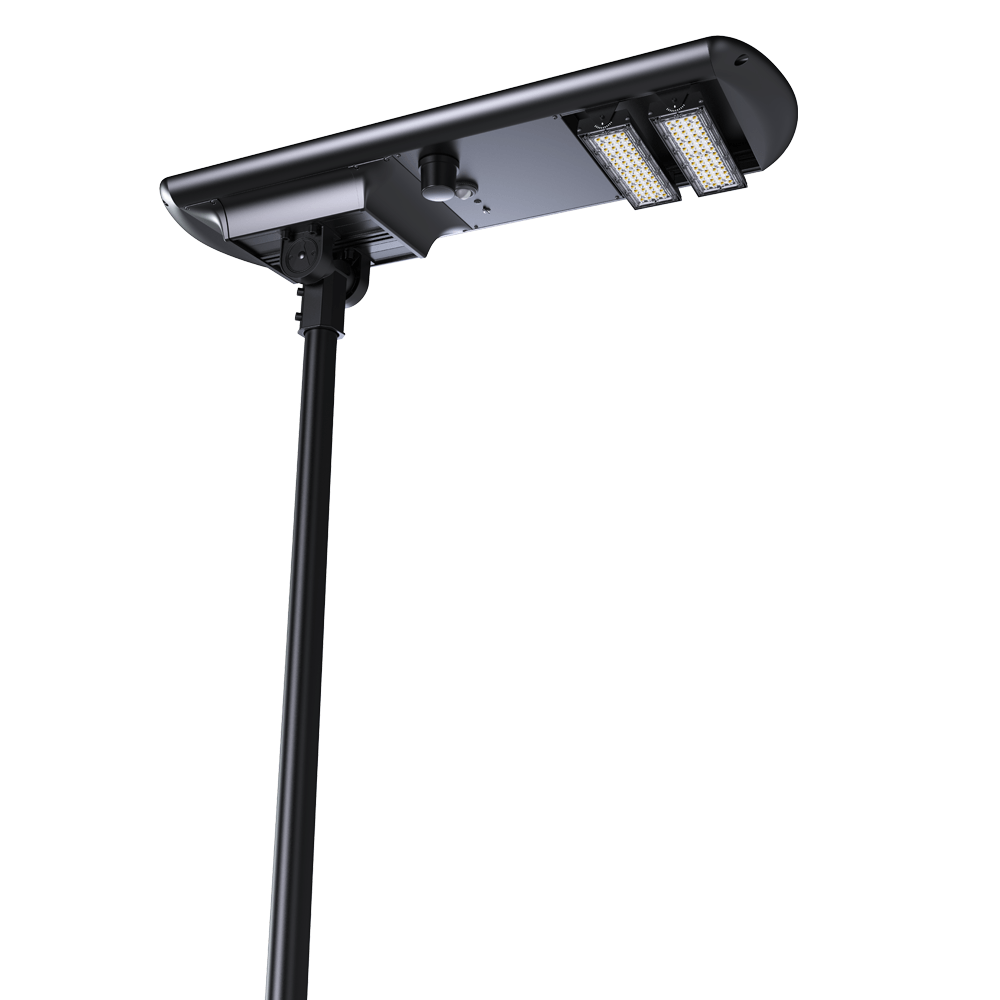

The integrated solar street light Solar Street Light Manufacturer-HangChi
The Best Solar street light you have seen-best innovation of integrated solar street lights.
| Power | Installing height | Installing Distance |
|---|---|---|
| 20W | 3M | 15M |
| 40W | 4M | 18M |
| 60W | 6M | 27M |
| 80W | 8M | 36M |
| 100W | 10M | 45M |
| 120W | 12M | 54M |
THE INNOVATION
OF THE ORIGINALITY
Originally designed to provide the real and continuous high brightness output for long operation hours,Triton is highly engineered all-in-one solar street light incorporating large battery capacity and extremely high efficacy LED than ever.
THE INNOVATION
OF THE ORIGINALITY
- High luminous efficiency of195lm/W to maximize battery performance.
Off-grid roadway lighting made electric bill free. - IP66 Luminaire ensures long lasting and consistent high performance.
- Five Years Warranty.
- Environment friendly-100% powered by the sun,solar panels reduce fossil fuel consumption, eliminating pollution.
- Self-contained solution-Light on/off controlled by automatic daylight sensing.
- EXTENDABLE SOLAR PANEL With foldable solar panel extension.
- Triton offers more choices for higher wattage with the same structure for more demanding applications.
The long operation hours high power output or for harsh environment where high performance required in short sunny hours.
RELIABILITY UNEXPECTED VALUE
- Quality lithium batteries are used to store the energy,provide energy for immediate.
- Requirements,and enable a back-up for days when there is little or no sun.
- High Lumen LED for maximum efficacy.
- Dedicated designed low-voltage solar controller technology with dimming capabilities for power-save management.
- Lifetime>50,000 hrs and
- CRI nominal 70.
- Microprocessor managed algorithms autonomously determine sunrise and sunset.
- Easy to install without buying cables and rectifiers, directly on pole with an adjustable spigot 0°~90°.
| Item:Blade | EL-30 | EL-40 | EL-50 | EL-60 | EL-80 | EL-100 | EL-120 | EL-150 |
|---|---|---|---|---|---|---|---|---|
| Light Brightness | 5850lm | 7800lm | 9750lm | 11700lm | 15600lm | 17550lm | 23400lm | 29250lm |
| Solar panel | ||||||||
| Power | 65W | 65W | 65W | 65W | 100W | 100W | 160W | 180W |
| Li-ion battery | ||||||||
| Capacity | 12.8V 25AH | 12.8V 30AH | 12.8V 30AH | 12.8V 36AH | 25.6V 24AH | 25.6V 30AH | 25.6V 42AH | 25.6V 48AH |
| Charging/Discharging Temp | 0~45¡æ | |||||||
| Charging Time | 4.5H | 6.7H | 6.3H | 8.4H | 8.4H | 10H | 10H | 10H |
| LED (OSRAM) | 3030/96PCS | 3030/144PCS | 3030/144PCS | 3030/192PCS | 3030/240PCS | 3030/288PCS | 3030/288PCS | 3030/288PCS |
| Efficiency | 190LM/W | 190LM/W | 190LM/W | 190LM/W | 190LM/W | 190LM/W | 190LM/W | 190LM/W |
| Performance | ||||||||
| Lighting Time in Rainyday | >10 DAYS | >10 DAYS | >10 DAYS | >10 DAYS | >10 DAYS | >10 DAYS | >10 DAYS | >10 DAYS |
| Control Mode | Magnet Switch£¬ON/OFF Long Press 1.5s | |||||||
| Lighting Mode | 2hrs-100%;3hrs-60%;4hrs-30%;3hrs-70% | |||||||
| Capacity Indication | 4LEDs£º>80%£»3LEDs£º60%~80%£»2LEDs£º30%~60%£»1LEDs£º<30%£»The 1st LED flashes quickly£ºLow power | |||||||
| IP/IK Class | IP65/IK08 |
